HANSEN P4

Click or tap plus for more info

Verona Facility

Our industrial gearbox facility is tucked along the industrial corridor of I-81 in the picturesque Shenandoah Valley of Virginia. This purpose-built facility was designed to efficiently handle the inventory, machining, assembly, quality control, and testing for our entire line of industrial gearboxes in the United States.
Custom
Purpose-Built Facility
Optimized to build over 100 large industrial gearboxes a month. There’s little we can’t handle.
Machining
On-Site Machining
With a full-service machine shop at our disposal, we keep costs and lead times down.
Inventory
Distribution Center
With centralized inventory to support the Western Hemisphere, we’ve got you covered.
Innovation
Information Technology
With the latest software and technology we aim to provide a world-class customer experience.
People
A Wealth of Experience
Decades of experience make our gearbox team some of the best in the industry.
Quality
Rigorous Standards
American Made. ISO 9001 certified. Member of AGMA, PTDA, CSA, EASA. We don’t compromise.
VARIATIONS
OUTPUTS
MIXER OPT
CLICK TO VIEW

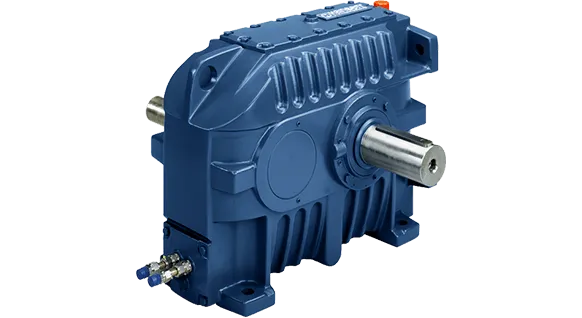

Single-Stage

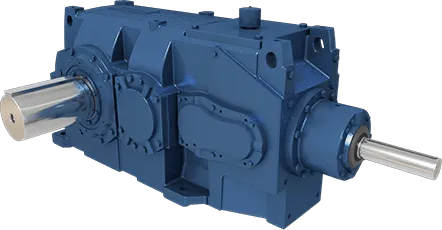

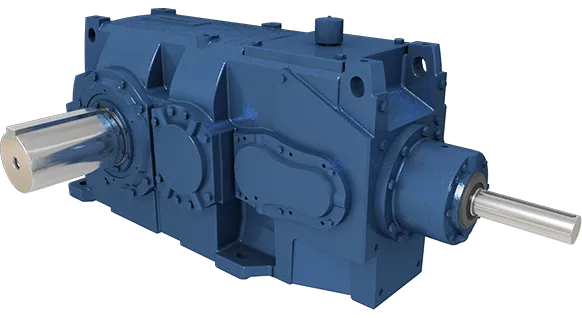

Horizontal

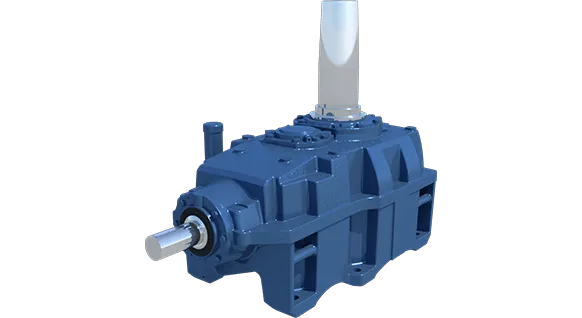

Vertical
Unused
Unused
Unused
Unused

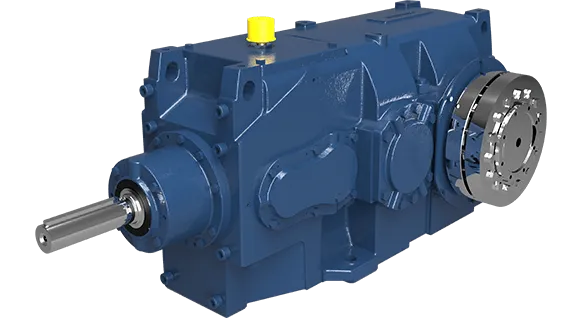

Hollow Shaft

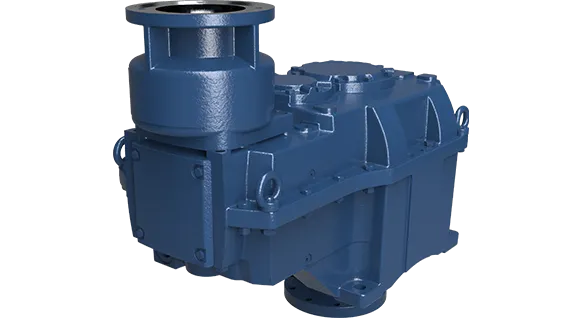

Pilot/Flange Mount

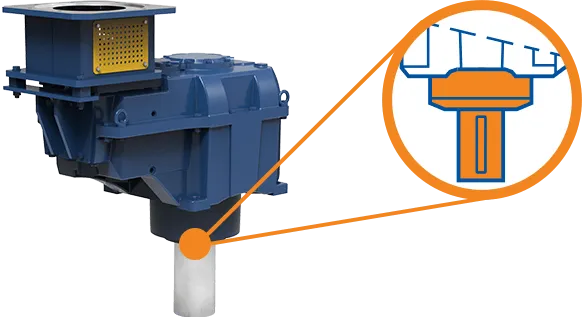

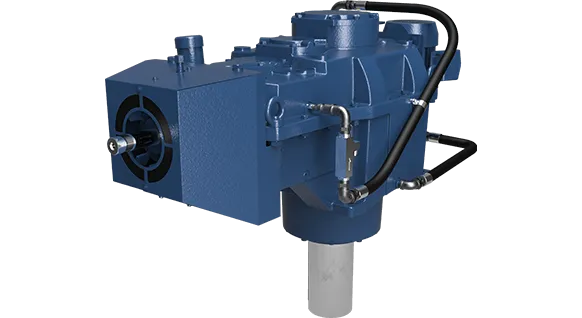

Extended Bearing
Unused
N/A
N/A

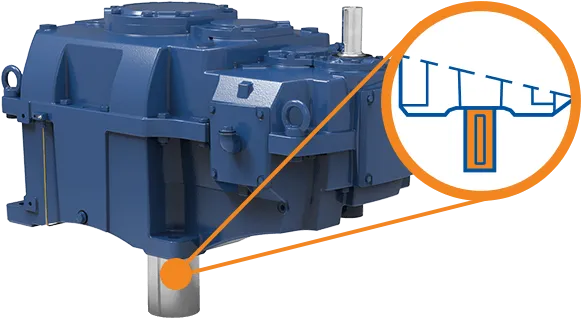

Normal Solid Shaft

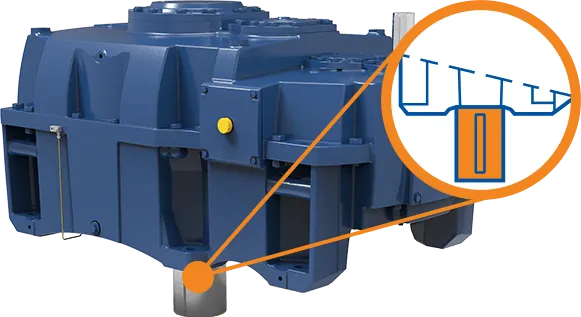

Oversized Solid Shaft

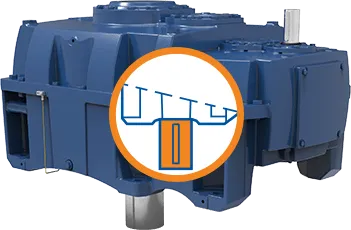

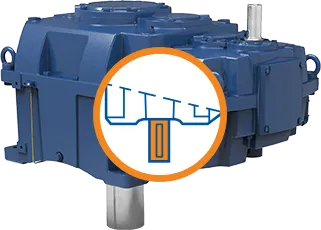

Extended Bearing Housing

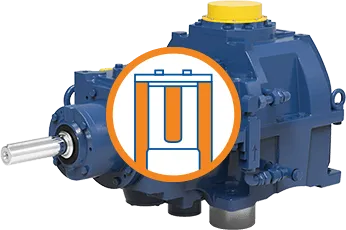

Keyed Hollow Bore

INTEGRATED DRYWELL

Cast into 3 and 4 stage vertical housing mean
this option provides a truly leak-proof
low-speed shaft.

SPLIT HOUSING

Rugged, split housing for horizontal
and vertical applications. Round housing
tops help keep the unit free from debris.

TACONITE SEAL

This option features a dual-layer
oil and grease system.

GEARS

High torque geometry in low-speed gear.
Low-noise geometry in high-speed gears.

SLOW-SPEED SHAFT

Shaft projections include captured keyways
with rounded end key inserts to eliminate
stress concentrations.

SLOW SPEED SHAFT

INTERNAL HOUSING

Exceptional construction ensures
bearings are lubricated at start-up to
maximize reliability and life.

HIGH-SPEED SHAFT

Extra long high-speed shaft projections suitable for interference-free coupling connections.

CYCLO® DISC

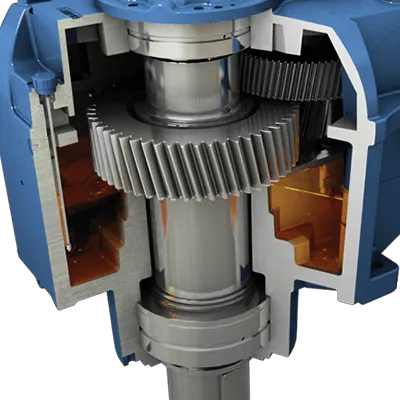

All rotating components are fully hardened, vacuum
degassed bearing-grade steel, for consistent, reliable performance.

HIGH-SPEED SHAFT

MAINTENANCE-FREE
OIL-LOCK®

Standard high-speed
seal arrangement.

PINION SHAFTS

Rigid standardized pinion shafts and
housings for better lateral load distribution.

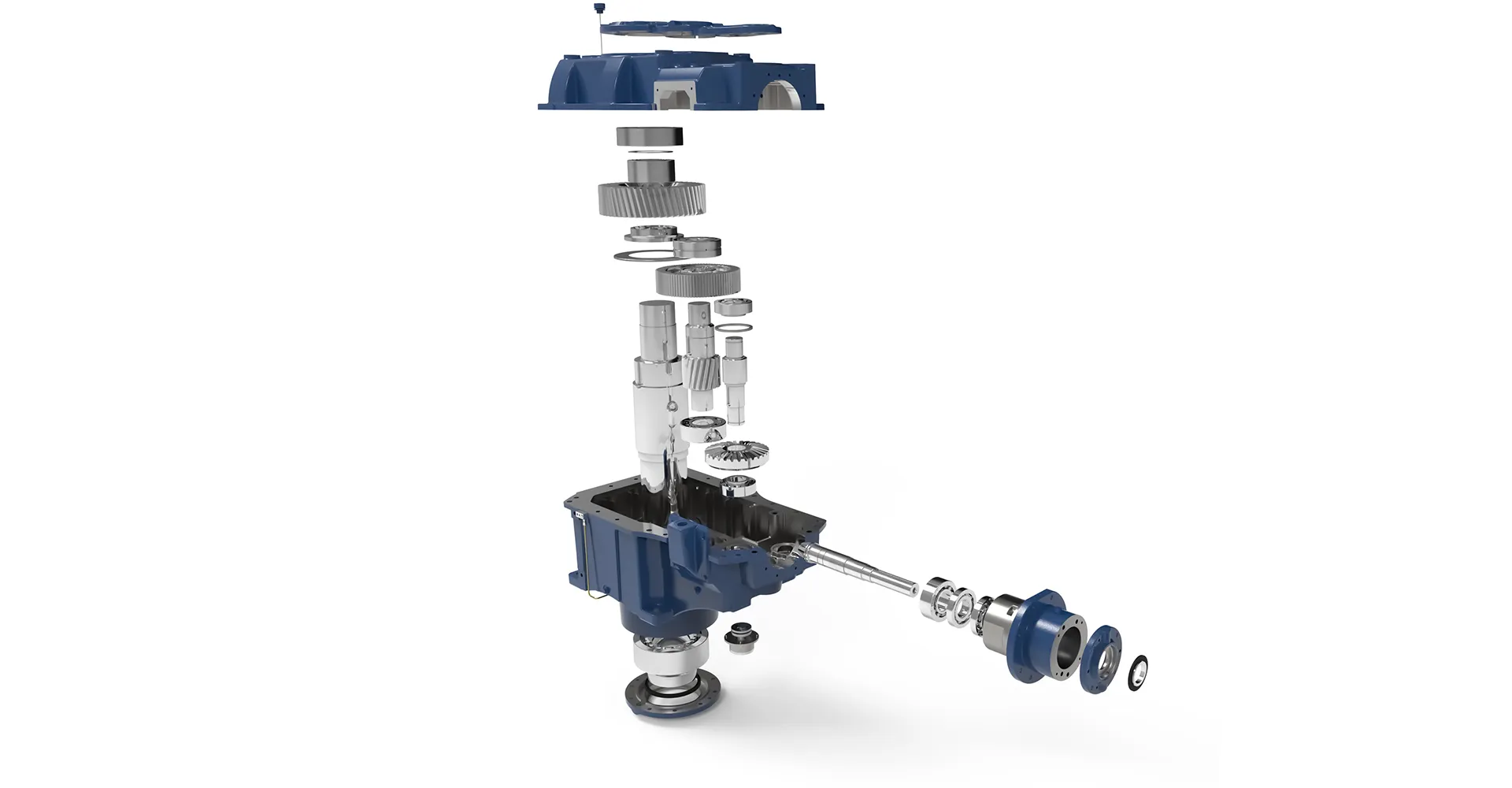

Swipe or move cursor to open

HANSEN P4

REMARKABLE POWER AND PERFORMANCE WITH LOW NOISE
The Hansen P4 multi-stage gear unit is market leading in quality and technology, excelling in reliability and durability. The rugged housing, along with our commitment to innovating state-of-the-art technology, provides remarkable power and performance.

The unique Oil-Lock™ system offers a maintenance-free seal on high speed shaft extensions.

Optional accessories: Backstops, Motor Mount Options, Multiple Sealing Upgrades, Various Heating, Cooling, and Lubrication Options, Heavy-Duty Paint or Packaging Options, and Complete Drive Package Solutions.
OPEN UNITOPEN UNITOPEN UNIT
view photos
configure
SPECS

HP RATING

Up to 14,080 HP
(10,500 kW)

DIAMETER

80mm to 400mm
(Solid, Heavy, Hollow)

TORQUE

Up to 9.7 mil lb•in
(1.1 mil N•m)

RATIO RANGE

Up to 630:1
(And Custom)

RIGHT-ANGLE AND PARALLEL SHAFT INDUSTRIAL GEARBOXES

LEARN MORE
LEARN MORE
LEARN MORE
LEARN MORE
Did you know...
Click or tap the plus icons on the LEFT to learn more about:
Gears
Bearings and Seals
Shafts
Housing
Options
Drive Packages
Customization
Configurator
14080
HORSEPOWER
2 YR
warranty
630:1
ratio

UniMiner Features

P4 GEARING
Precision carburized and ground gearing delivers high capacity, optimum efficiency and quiet operation.
EXTENDED TILT CAPABILITY
Mounting can be varied by +/- 3 degrees without additional lubrication system modifications.
RUGGED HOUSING
Reinforced ribbing provides optimal strength in key areas. Designed to accommodate large motor mounting options. Pilot for motor lantern is standard.
TACONITE TYPE SEALS
Optional taconite seal that is standard grease purgeable with internal drain-back allows for superior oil-flow to bearing while maximizing seal life.
HIGH SPEED SHAFT
Extended projection allows for coupling installation without interference.
OPTIONAL ACCESSORIES
Upgraded Sealing Options
Backstops
Heating and Cooling Options
Flexible or Hydro-Dynamic Couplings
Motors including Large Heavy-Duty
Optional D-Flange or C-Face
Complete Drive Package Solutions
DriveSMART Reliability and Condition
Monitoring Packages

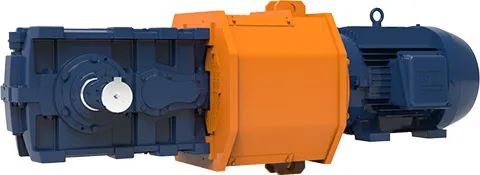

MOTOR LANTERN
Flippable, alignment-free housing design with pilot for lantern housing.
PLAY
FLIPPABLE HOUSING
One Unit
2 Nameplates
2 Shaft Assemblies
2 Inspection Covers

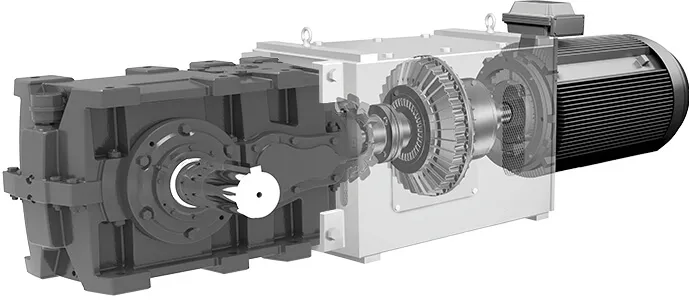

P4 UniMiner

Heavy Duty Conveyor Drives - Heavy Duty Design; Proven in the Field
The Hansen P4 UniMiner features a robust design that offers versatility for
different mounting positions. With a ‘flippable’ housing and horizontal
split line, it’s the ideal alignment-free drive package.
Hansen Industrial Gearboxes’ P4 UniMiner gear units are compact
and optimized for mining and other applications involving
bulk material handling.
Drop-In replacement for most other alignment-
free drives.
The Paramax® UniMiner is built on the reliable existing product platform and incorporates
a new housing design that can reduce product inventories when both left and
right handed assemblies are required.
Paramax® gearboxes are compact and proven in mining and other
heavy-duty applications. They excel in all types of bulk material handling
applications and provide long and trouble-free operation.
Paramax® UniMiner can be a direct drop-in to most other alignment-
free, shaft mounted drive packages.

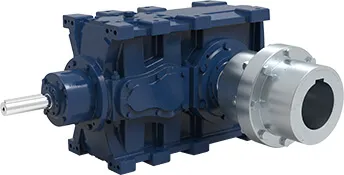

Motor Adapter
Rigid Moment Coupler
SPECS

HP RATING

Up to 2,300 HP
(1,738 kW)

DIAMETER

4 5/8 in to 7 1/2 in
(Hollow & Solid)

TORQUE

Up to 889,000 lb•in
(100,445 N•m)

RATIO RANGE

2 or 3 Stage
10 to 71:1

Retro-Fits

Match Existing Footprint
A custom transition base will position the new low-speed shaft to be in the EXACT same position as the original low-speed shaft. Our retrofits provide an excellent balance between the cost savings of a standard gearbox and the benefits of minimal on-site modifications.
Typically, only relocating the motor mount is required for this option. We offer motor mounting options to help minimize the impact of relocating the motor mount, such as flanged motor adapter for c-face or d-flange motors.
Options might include a special low-speed shaft diameter or length and motor lantern.
The red circles in the diagram represent the existing bolt pattern of a customer’s unit. The transition base is fabricated to match the height, ensuring alignment of the low-speed shaft to the machine shaft.
Retro-Fit units with transition bases allow us to match your
existing footprint for an easier upgraded installation.
PLAY

Drop-Ins

Match Existing Unit's Critical Dimensions
With downtime being such a critical factor in your operation, let us install
one of our custom drop-in units.
Installation-ready units are designed specifically to drop-in to
existing applications with ease. Our expert engineers
understand that on-site modifications or re-engineering
your system is not always an option.
These stress-free units can have your application back up
and running in no time. We offer fabricated steel
housings, custom baseplates, custom gearing
and shafting and more!
This product will literally drop-in to place;
same footprint, same shaft positions!
Specialty Units
For non-standard gearing and custom ratios, we offer special
customized units to fit in any application. From custom paint to intricate
gearbox lubrication systems, our team of engineers will make sure all of your custom gearbox needs are met.
With downtime being such a critical factor in your operation, let us
install one of our custom drop-in units.
Installation-ready units are designed specifically to drop-in to
existing applications with ease. Our expert engineers
understand that on-site modifications or re-engineering
your system is not always an option.
These stress-free units can have your application back up
and running in no time. We offer fabricated steel
housings, custom baseplates, custom gearing
and shafting and more!
This product will literally drop-in to place;
same footprint, same shaft positions!
Specialty Units
For non-standard gearing and custom ratios, we offer special
customized units to fit in any application. From custom paint to intricate
gearbox lubrication systems, our team of engineers will make sure all of your
custom gearbox needs are met.
PLAY

Included SMART
Protection Packages

RMP1

RMP2

RMP3

GBCMP

3micron Filtered/Hydroscopic HG8 Breather
- Color Indicating Desiccant
- Vacuum Style Clogging Indicator
- Replaceable Desiccant Element
- Cleanable Filter Element
Main Oil Sump Drain Valve
- For on/off line Filtration
Oil Fill Quick Connector
Oil Sampling Pitot Tube
Accelerometer Mounting Pads on Gearbox
2x Factory Installed Accelerometers and Cabling
4-20mA Transmitter, 240VDC Power Supply for 120-230VAC Input
Centralized NEMA 4 Enclosure
CycloSMART® Diagnostic Unit
- Preprogrammed with Unit Operational Limits
Oil Sump Temperature RTD with Transmitter
Oil Level Switch
Oil Humidity Sensor
Light Tree

DriveSMART

System Maintenance And Reliability Technology
Sumitomo Drive Technologies has partnered with industry leading sensor suppliers to provide superior condition monitoring for Large Industrial Gearboxes. There are three options available to our customers.

Each option helps Reliability teams with the consistent collection of data for Vibration Analysis, as well as Oil Condition and Cleanliness.

All DriveSMART options include: oil sampling pitot tube, and oil breather package that incorporates oil fill/drain ports.
DriveSMART Options
Option 1
Machined Accelerometer Mounting Pads Only.
Option 2
Option 1 + Accelerometers Wired to Junction Box with Multi-Position Switch.
Option 3
Option 2 + Outputs to Customer PLC or DCS.

Machine Shop Manufacturing Capabilities

1,000 Ton Press
Tooth Form Grinding
Two Hoflers—1.5M (59”) and 2.6M (102”) OD
Hobbing for Helical Gearing
Two Hofler CNC machines– up to 1.6M (63”) OD
One CNC Welter hob up to 5.3M (205”)OD
Herringbone
Five Sykes shaper machines up to 50” OD
One 12M MAAG shaper retrofitted with CNC
controls and high speed milling
Internal Splines
Two Fellows shapers machines up to 36” OD
Horizontal Turning Machines
CNC turning up to 35” OD x 130” length
Manual turning up to 43” OD x 300” length
Vertical Turning Lathe Machines
Two CNC machines turning up to 65” OD
Manual Turning up to 125” OD
Vertical Turning Center: 127” X-axis x 55” Y-axis
OD Grinding: 48” OD x 160” length
Dynamic Balancing: Up to 10,000 lbs part
Horizontal Boring Mill: 240” X-axis x 120” Y-axis
Surface grinder, bore grinder, keyway slotter,
radial drill, milling machine
Crane Capacities: 30 ton & 10 ton in main bay,
20 ton in grinding room
LUFTEX TRAILER
WATCH NOW

Aftermarket

Our personnel are the industry’s most versed gearbox problem solvers. We provide both standard and tailored services, for maximum gearbox life.
Experts in Service
Global Support, Local Service
With a vast network of engineers and gearing experts, there is no problem we can’t handle.

In addition to our extensive network, LUFTEX Gears Manufacturing and Services provides unmatched capabilities and expertise in the area of custom gearbox repair and service. With a 60-ton crane capacity and 41-foot hook height, no gearbox is too big for us to handle.
Repairs
Scheduled & Emergency Repair
Repair services for all your related gearbox needs and 24-72 hour turnaround to the original factory specifications and warranty using Sumitomo -manufactured parts.
Root Cause Investigation
Product Support
Apply a wide range of approaches, tools and techniques to uncover the causes of your problems.
Field Services
For Your Convenience
Most of the services offered and customized training can be performed on location.
Small & Medium Gearbox Support:
Large Industrial Gearbox Support:
Phone:
757-485-3355
