Strength (Mpa)
Click or tap plus for more info
MOUNTING
OPTIONS
CLICK TO VIEW
•

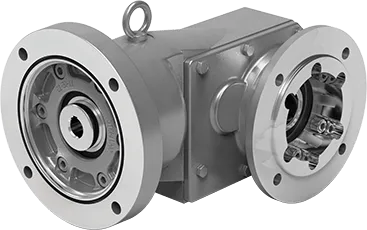

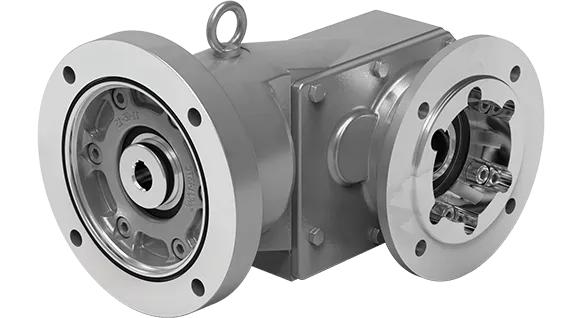

Flange Mount
•

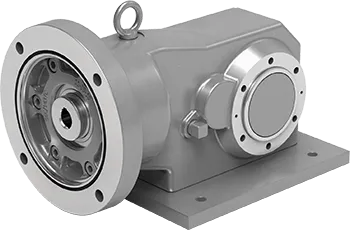

Foot Mount
•

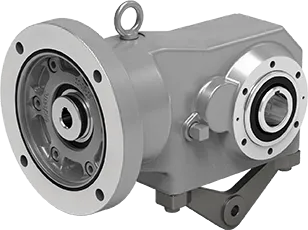

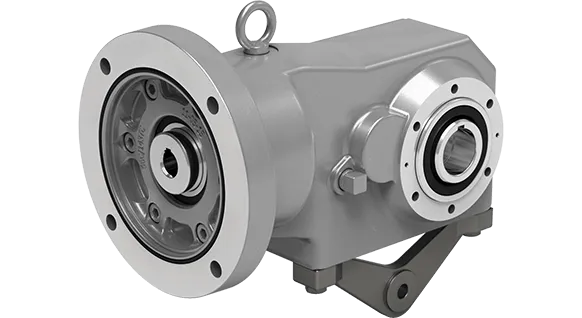

Torque Arm
•
Gearmotor
•
Taper-Grip Bushing®
•

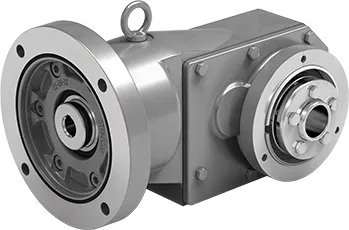

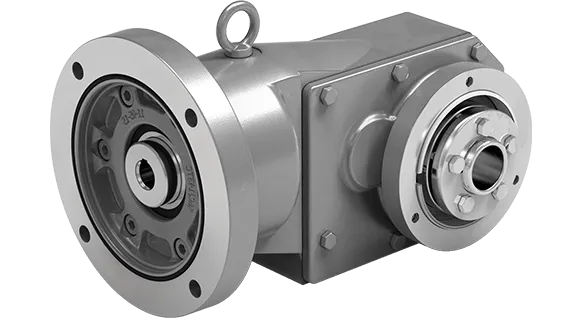

Shrink Disc
•

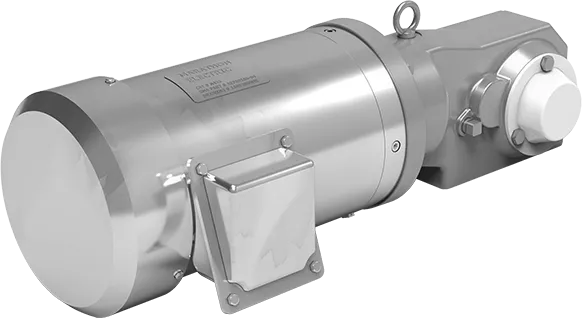

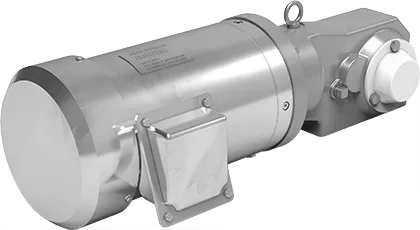

Stainless Steel Motors
•
Flange Mount
•
Unused
Our cutting-edge in-house laser etching
technology ensures a cleaner finish by
eliminating the need for an
attached nameplate.
technology ensures a cleaner finish by
eliminating the need for an
attached nameplate.
SPLIT HOUSING
Standard in large frame sizes to allow
easy maintenance. Available in
standard gray cast iron with ductile
and fabricated steel options.
easy maintenance. Available in
standard gray cast iron with ductile
and fabricated steel options.
TACONITE SEAL
This option features a dual-layer
oil and grease system.
oil and grease system.
COVER PLATE
Hardened-steel gearing.
OPTIONAL TACONITE
SEAL ASSEMBLY
Heavy-Duty, fortified, grease purgeable
system withstands the most demanding
applications.
system withstands the most demanding
applications.
CASSETTE SEAL
Antimicrobial FKM Shaft Isolator seal packed with food-grade
grease and all stainless steel wearing ring and springs.
grease and all stainless steel wearing ring and springs.
HYPOID PINION
Single-piece all steel hypoidal pin
with dual bearing support for longer life.
Lasts millions of cycles without measurable wear.
with dual bearing support for longer life.
Lasts millions of cycles without measurable wear.
MONOBLOC HOUSING
Cast iron housing is strong, corrosion resistant,
and sound dampening. Monobloc design
eliminates leaks at housing split.
and sound dampening. Monobloc design
eliminates leaks at housing split.
NEMA QUILL C-FACE
The quill style motor adapter allows for
maximum motor flexibility. Supports
NEMA 56C, 143TC, and 145TC.
maximum motor flexibility. Supports
NEMA 56C, 143TC, and 145TC.
HIGH-SPEED SHAFT
CONTOURED HOUSING
Unique design reduces the build-up of
bacteria in those hard to reach areas.
bacteria in those hard to reach areas.
PINION SHAFTS
Rigid standardized pinion shafts and
housings for better lateral load distribution.
housings for better lateral load distribution.
ALL-STEEL HYPOIDAL GEARS
Long-lasting hypoid gear efficiencies up to 93%
with smooth and quiet operation.
with smooth and quiet operation.
Swipe or move cursor to open

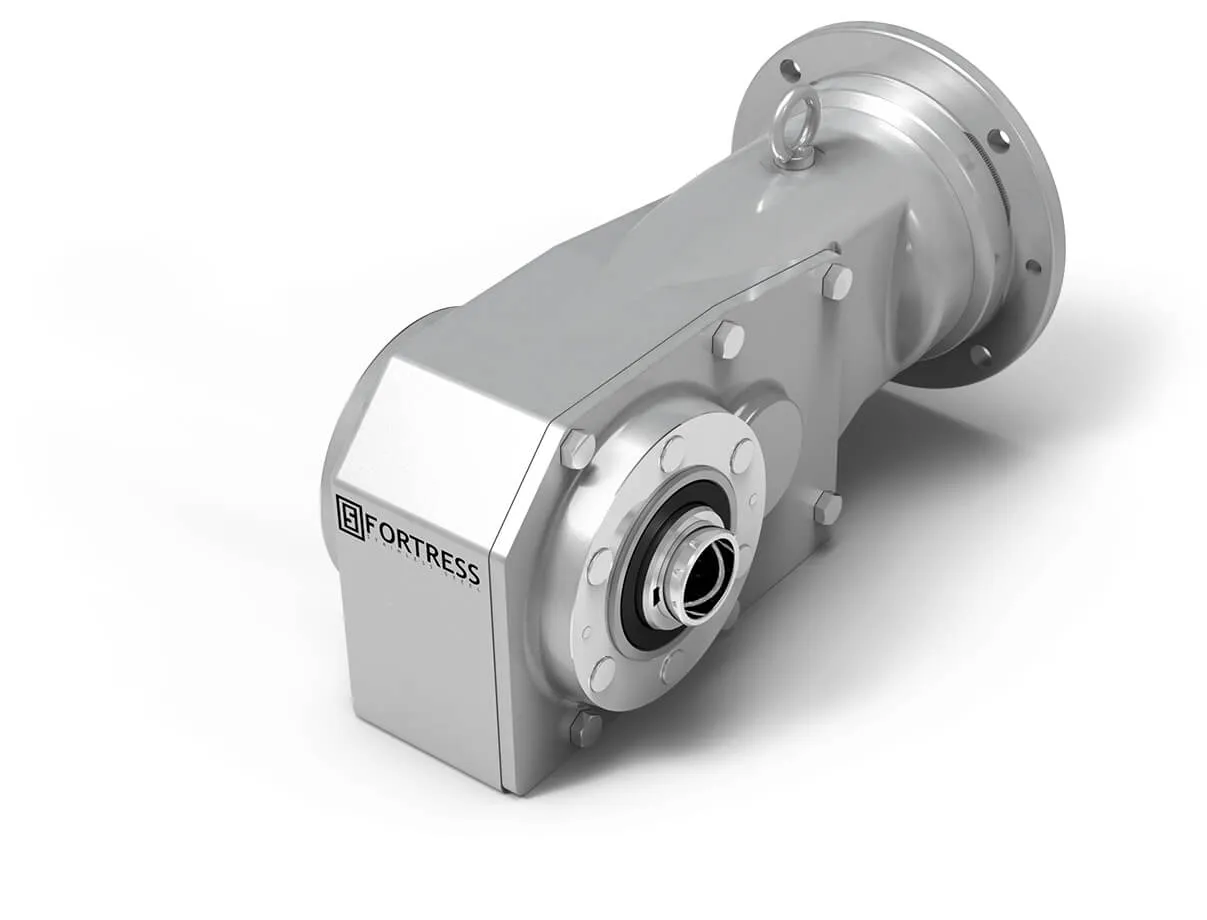

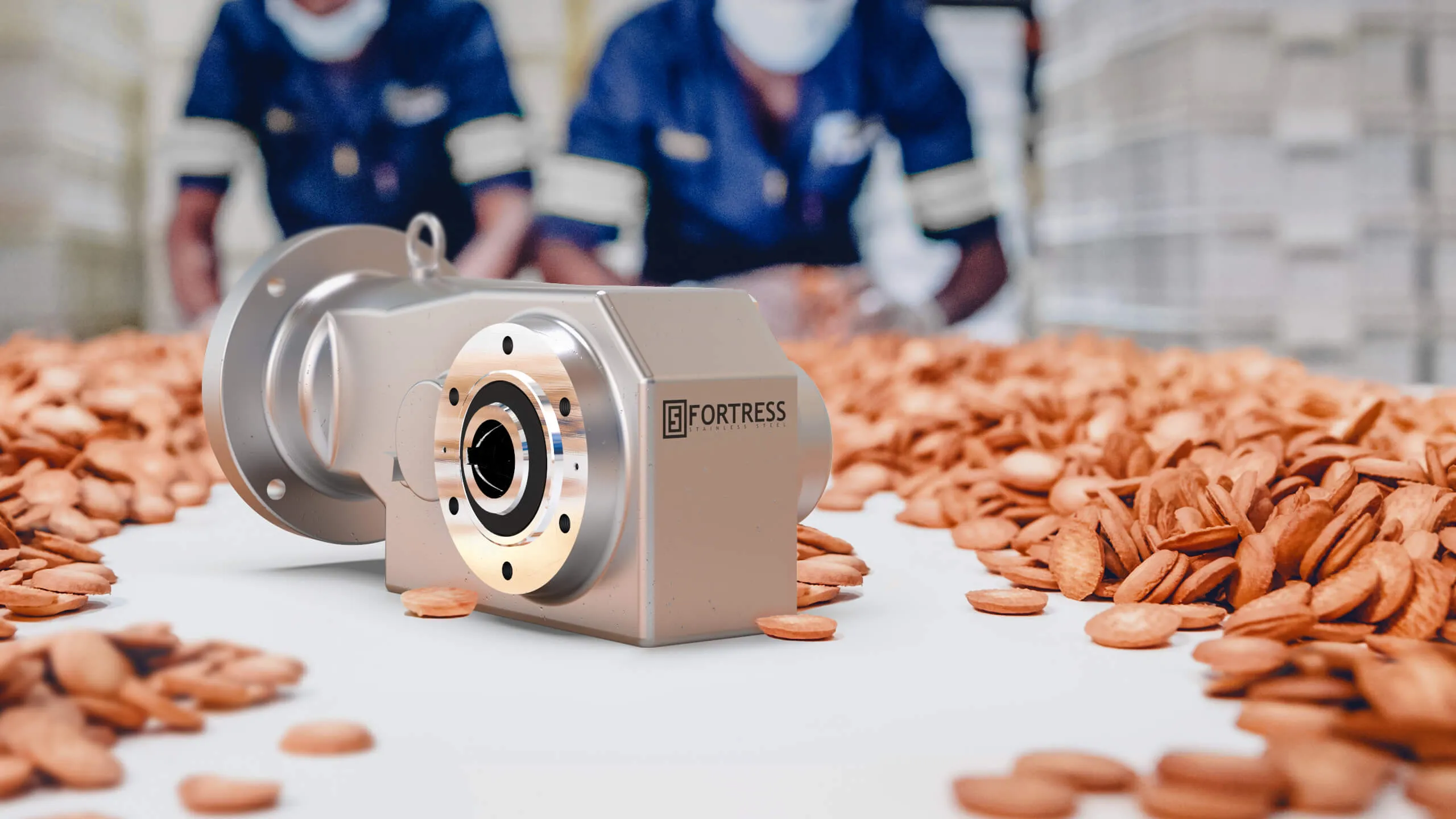

HIGHLY EFFICIENT, GREASE LUBRICATED, COMPACT DESIGN
With over 25 years of hypoid gearing excellence, we are experts in efficiency. Fortress® features a compact, stainless steel cast 304 housing, food-grade grease lubrication, and boasts up to 93% gear efficiency. The IP69K rating also means that it's perfect for harsh, high-pressure wash-down environments.
The maintenance-free grease lubrication enables the unit to be mounted in any orientation without custom modifications. Additionally, take advantage of our flange, foot-mount, and torque arm options which drop right in, allowing you to conveniently replace those old, inefficient gearboxes.
The maintenance-free grease lubrication enables the unit to be mounted in any orientation without custom modifications. Additionally, take advantage of our flange, foot-mount, and torque arm options which drop right in, allowing you to conveniently replace those old, inefficient gearboxes.
SPECS
HP RATING
1/2 HP to 2 HP
(1.72 kW)
DIAMETER
3/4in to 1-7/16in
(Solid Shaft)
TORQUE
Up to 2,190 lb•in
(247 N•m)
RATIO RANGE
7:1 up to 60:1
RIGHT-ANGLE SPEED REDUCER
Did you know...
Click or tap the plus icons on the LEFT to learn more about:
Reducer
Output Options
Gears
Lubrication
Housing
Seals
Configurator
2
HORSEPOWER
2 YR
warranty
60:1
ratio
Easy-Grip™
3-Part Keyless Shaft Locking System
Easy-Grip™ uses unique interchangeable bushings and a shrink disc set to allow easy attachment of the gear reducers to standard available shafting up to h11 tolerances.
Support Bushing
Positions the reducer axially on the
driven shaft.
driven shaft.
Clamp Bushing
Compensates for the space between the
gear reducer hollow shaft inner diameter and
the diameter of the driven shafts.
gear reducer hollow shaft inner diameter and
the diameter of the driven shafts.
Shrink Disc
Compresses the hub, clamp bushing, and driven
shaft to transmit torque.
shaft to transmit torque.
COMMERCIAL TOLERANCE
RELIABLE
LESS SPARES
EASY INSTALL & REMOVAL
Stainless Steel components available on request. Contact us for availability.
CycloSMART®
The Check Engine Light for Speed Reducers
CycloSMART® is a condition monitoring system that provides predictive maintenance by notifying customers—via local ethernet or broadcast— the health of the asset. Thus, minimizing risk while avoiding catastrophic failure.
CycloSMART® is fully customizable and provides real-time condition data of all of our reducers or any piece of rotating equipment. It provides an accurate condition signal without the need for further analysis. Leave the thinking to us!
CycloSMART® is fully customizable and provides real-time condition data of all of our reducers or any piece of rotating equipment. It provides an accurate condition signal without the need for further analysis. Leave the thinking to us!
CycloSMART® Benefits
Predictive
Machine diagnostics for early warning and detection to avoid failure.
Reliable
Schedule machine downtime to avoid lost production.
Cost-Effective
Lower total cost of ownership.
Optimization
Customizable systems to meet many different application needs.
Expandable
Multi-reducer and component monitoring.
Compatible
16 inputs, communication via Ethernet/IP and Profinet available.
Safe
Monitor assets from the safety of your desk via network connections.
Aftermarket
Our personnel are the industry’s most versed gearbox problem solvers. We provide both standard and tailored services, for maximum gearbox life.
Experts in Service
Global Support, Local Service
With a vast network of engineers and gearing experts, there is no problem we can’t handle.
In addition to our extensive network, LUFTEX Gears Manufacturing and Services provides unmatched capabilities and expertise in the area of custom gearbox repair and service. With a 60-ton crane capacity and 41-foot hook height, no gearbox is too big for us to handle.
In addition to our extensive network, LUFTEX Gears Manufacturing and Services provides unmatched capabilities and expertise in the area of custom gearbox repair and service. With a 60-ton crane capacity and 41-foot hook height, no gearbox is too big for us to handle.
Repairs
Scheduled & Emergency Repair
Repair services for all your related gearbox needs and 24-72 hour turnaround to the original factory specifications and warranty using Sumitomo -manufactured parts.
Root Cause Investigation
Product Support
Apply a wide range of approaches, tools and techniques to uncover the causes of your problems.
Field Services
For Your Convenience
Most of the services offered and customized training can be performed on location.
