BEVEL BUDDYBOX® H SERIES
Click or tap plus for more info
Coupled C-Face
Adapter windows simplify motor installation.
Available for Sizes: A to F.
Mounting Modal 7
Allows unusually compact installations.
Available for Sizes: 6060 to 6265.

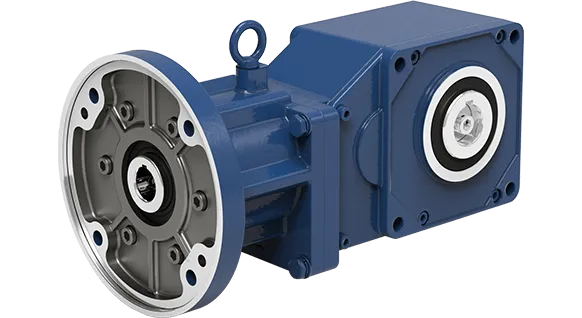

Keyed Hollow Bore
Shaft mounted option for reduced envelope dimensions.
Standard option for Sizes C-M.
Options Modal 5
Mill, chemical, food, and outdoor duty packages available.
Available for Sizes: 6060 to 6265.
Governing sanitation bodies such as USDA, FDA, NSF, CFIA and 3-A are recommending higher levels of bacteria control and increased sanitation measures in food and beverage handling environments. With this sanitation focus, there is an industry-wide initiative to increase the chemical concentration, water temperature, and frequency that facilities are cleaning their equipment.
In order to resist high water pressure, humidity, acidity, and caustic environments, Sumitomo Drive Technologies developed the UltraSHIELD360°® package—a tri-layer coating system.
In order to resist high water pressure, humidity, acidity, and caustic environments, Sumitomo Drive Technologies developed the UltraSHIELD360°® package—a tri-layer coating system.
2-Part Epoxy Topcoat
2-Part Epoxy Color Coat
2-Part Epoxy Primer
Quality Food-Grade Components
We offer top of the line food grade components to accompany our speed reducers.
Marathon Powerwash™ Motors
Totally enclosed stainless steel
100% paint-free construction
Double-sealed ball bearings
Cassette Seals
Antimicrobial FKM material
Spinning expels contaminants
Self-contained and self-cleaning
IN/OUTPUTS
MOUNTING
CLICK TO VIEW
•
C-Face
•

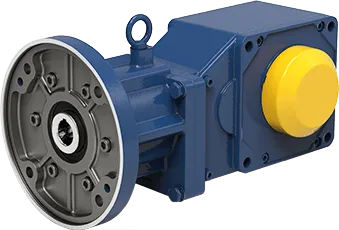

Quill
•

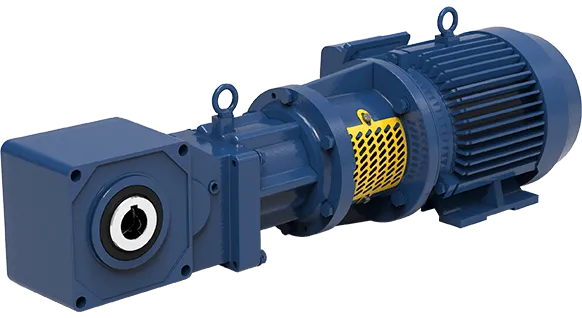

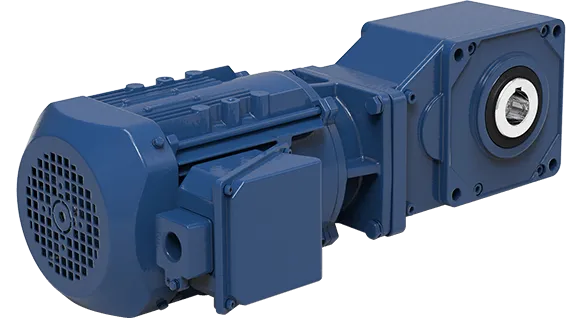

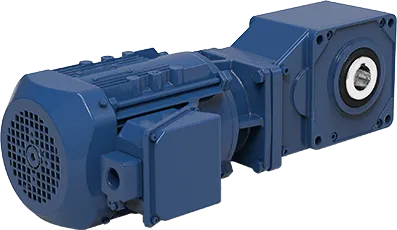

Gearmotor
•
Keyed Hollow Bore
•

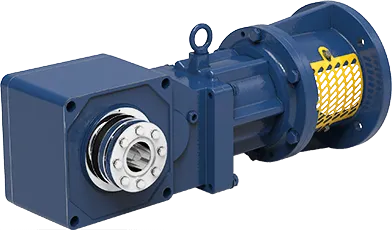

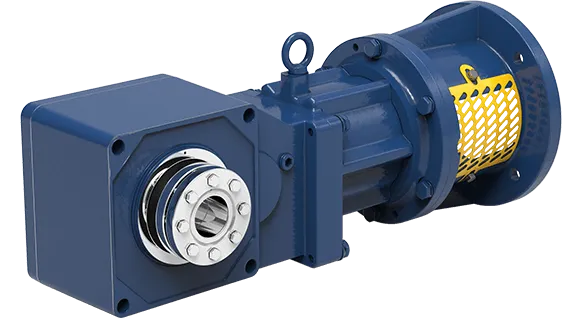

Shrink Disc
•
Not Used
•
Not Used
•

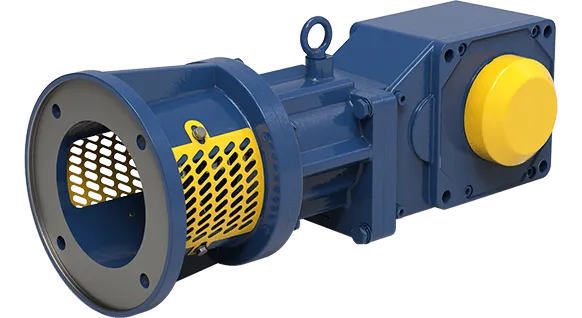

Face Mount
•

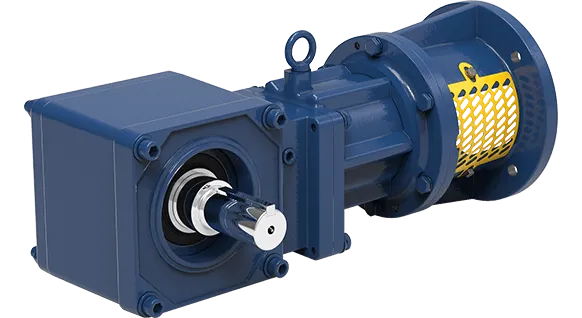

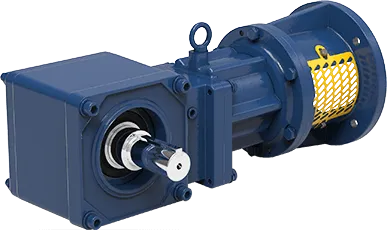

Flange Mount
•

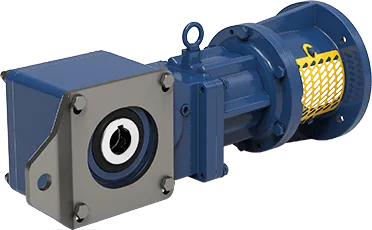

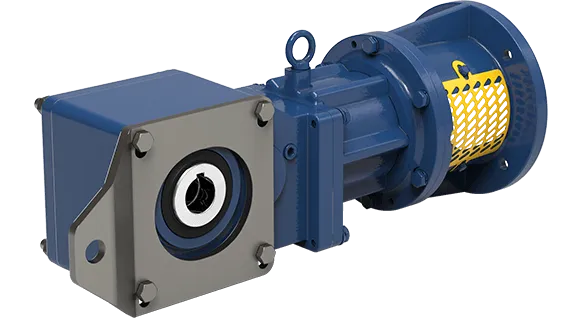

Torque Arm
•
Foot Mount
•
N/A
•
N/A
•

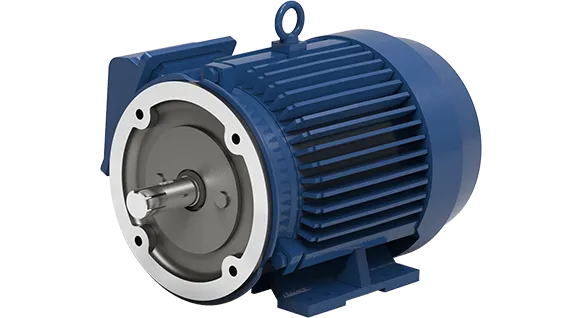

C-Face Motors
•
EasyGrip™
•
SHIELD360® Protection

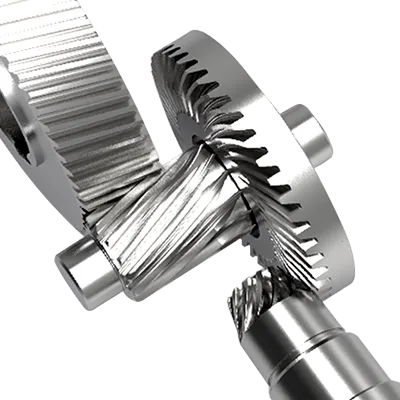

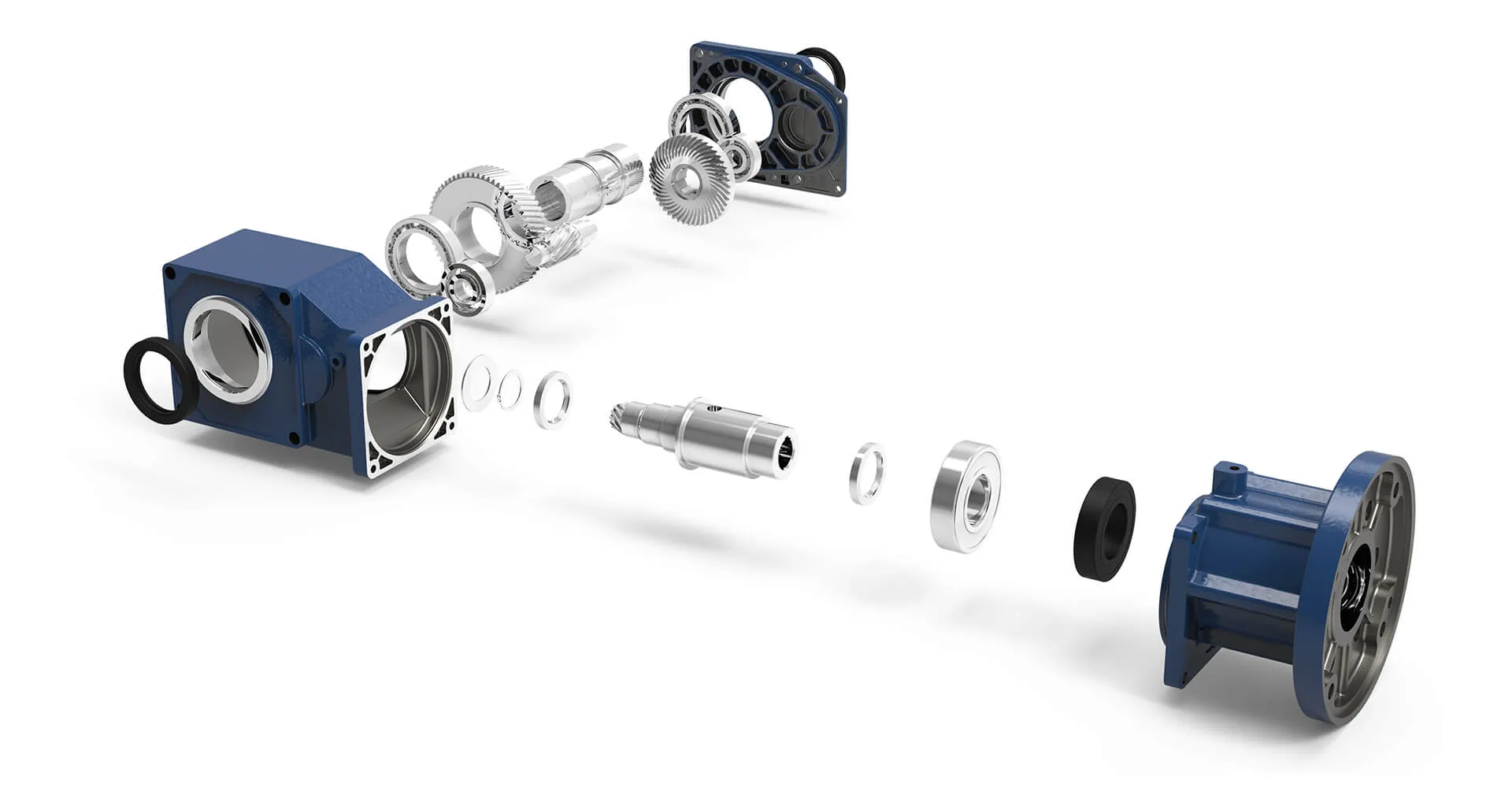

BEVEL PINION & HELICAL GEARING
Delivers a powerful blend of torque and speed
with up to 97% gear efficiency. Smooth, quiet
performance without the need for a cooling fan.
with up to 97% gear efficiency. Smooth, quiet
performance without the need for a cooling fan.
HARDENED
STEEL GEARING
SEALS
Multiple lip, harsh duty, and food-
grade designs available to prevent leaks.
grade designs available to prevent leaks.
GEARS
High torque geometry in low-speed gear.
Low-noise geometry in high-speed gears.
Low-noise geometry in high-speed gears.
SLOW-SPEED SHAFT
Shaft projections include captured keyways
with rounded end key inserts to eliminate
stress concentrations.
with rounded end key inserts to eliminate
stress concentrations.
SLOW SPEED SHAFT
DUAL BEARING SUPPORT
BEVEL PINION
The single-piece all-steel bevel pinion lasts
millions of cycles without measurable wear.
millions of cycles without measurable wear.

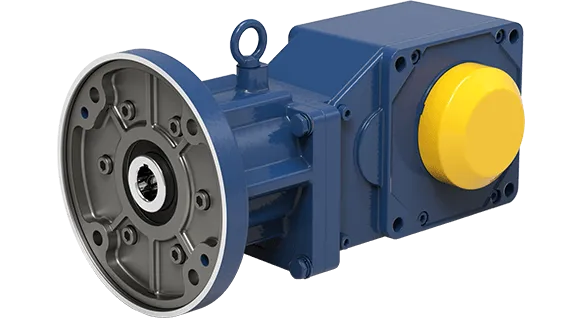

C-FACE QUILL
Supported by two bearings for a long operational
life, the quill-style motor adapter allows for maximum
motor flexibility.
life, the quill-style motor adapter allows for maximum
motor flexibility.
DUAL BEARING SUPPORT
MAINTENANCE-FREE
OIL-LOCK®
Standard high-speed
seal arrangement.
seal arrangement.
PINION SHAFTS
Rigid standardized pinion shafts and
housings for better lateral load distribution.
housings for better lateral load distribution.
QUALITY HOUSING
Aluminum housing is lighter and
increases thermal capacity.
increases thermal capacity.
Swipe or move cursor to open
BEVEL BUDDYBOX® H SERIES
EXTREMELY EFFICIENT AND COMPACT WITH LOW REDUCTION RATIOS
The combination of a Bevel Input and a Helical Output make this unit extremely efficient with the capacity for input speeds up to 3,600 rpm. Dependable hardened-steel gearing inside a lightweight, compact housing allows for easy installation with less load on the head shaft. Aluminum construction provides high thermal capacity.
The maintenance-free grease lubrication enables the unit to be mounted in any orientation without custom modifications. The greater efficiency of the BBB-H allows for use of a smaller motor, resulting in the same performance with much lower operating costs. Its power and speed make this unit perfect for airport baggage handling and general conveying applications.
The maintenance-free grease lubrication enables the unit to be mounted in any orientation without custom modifications. The greater efficiency of the BBB-H allows for use of a smaller motor, resulting in the same performance with much lower operating costs. Its power and speed make this unit perfect for airport baggage handling and general conveying applications.
SPECS
HP RATING
Up to 15 HP
(11 kW)
DIAMETER
1in to 2-3/16in
(Hollow Bore)
TORQUE
Up to 9,028 lb•in
(1,020 N•m)
RATIO RANGE
5:1 up to 20:1
RIGHT-ANGLE SPEED REDUCER
Did you know...
Click or tap the plus icons on the LEFT to learn more about:
Reducer
Gears
Housing
Lubricated for Life
Output Options
Configurator
REDUCER
High input speed capability, up to 3600 rpm (120 Hz) with a high and low reduction ratio from 5:1-20:1 and a motor capacity of 3-15HP.
Bevel gear technology is up to 97% efficient across all ratios and requires no cooling fan.
The greater efficiency of the BBB-H allows for use of a smaller motor, resulting in the same performance with much lower operating costs.
The smooth and quiet operation of the BBB-H makes it the perfect choice for commercial applications in which a low noise level is desired.
The quality materials and high performance grease result in a reliable unit that does not require maintenance.
A full array of input and output options with standard universal mounting positions provides a product to fit nearly any requirement.
GEARS
Patented bevel gear technology with up to 97% gear efficiency across all ratios.
All-steel bevel gear design transmits power more efficiently for greater torque density in a compact unit.
Matched bevel sets insure quiet operation.
HOUSING
The ADC12 aluminum housing is compact, lightweight, heat dissipating, and corrosion resistant.
Available hollow shaft and flange mounted configurations for multiple equipment connection options.
LUBRICATED FOR LIFE
The unit is filled with the appropriate grease at assembly. All grease options are maintenance-free grease which eliminates shutdowns for oil or grease changes.
Grease lubrication enables the unit to be mounted in any orientation without custom modifications.
High temperature and low temperature, plus standard ambient temperature seal designs are available to maximize operational life.
OUTPUT OPTIONS
Carbon steel and Stainless shafting are available.
Inch and metric keyed hollow bores for all frame sizes.
Sumitomo offers Easy-Grip™ Kits, which use unique interchangeable bushings and a shrink disc set to easily attach the gear reducers to standard shafting. This flexibility allows the same gearbox to be used on different size shafts, simplifying initial design considerations and reducing spare unit inventory.
OPTIONS, DRIVE PACKAGES, AND CUSTOMIZATION
Sumitomo offers a wide variety of standardized options to suit your application:
Breathers
Forced lubrication and Condition Monitoring
Shaft connection accessories and motor mounting
Sumitomo offers complete Input to Output drive packages:
Heavy-duty motor mounting options
A shaft coupling option for every application
Safety guards which meet/exceed OHSA/MSHA recommendations.
TAPER-GRIP® BUSHING OUTPUT OPTION
The patented Sumitomo Taper-Grip® bushing system provides a simple shaft-mounting device that provides self-aligning, backlash-free torque transmission to the driven shaft.
The unique design provides easy unit mounting and removal from the driven shaft, and resistance to fretting and corrosion.
Multiple stock bore sizes available for quick delivery.
ROTATE CONTENT 8
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
TITLE GOES HERE
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
ROTATE CONTENT 9
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
TITLE GOES HERE
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
ROTATE CONTENT 10
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
TITLE GOES HERE
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
Text goes here. Text goes here. Text goes here. Text goes here.
15
HORSEPOWER
3 YR
warranty
20:1
ratio
Commercial Tolerance
Eliminates the need to have precise machining tolerance on the driven shaft, decreasing its cost.
Reliable
Tension-optimized and virtually indestructible shrink discs guarantee the highest possible degree of safety.
Less Spares
Multiple bushing diameters available for each gear reducer size, reducing spare-part inventory.
Easy Installation & Removal
Simple, fast install with no fretting corrosion or surface damage to halt removal of the reducer.

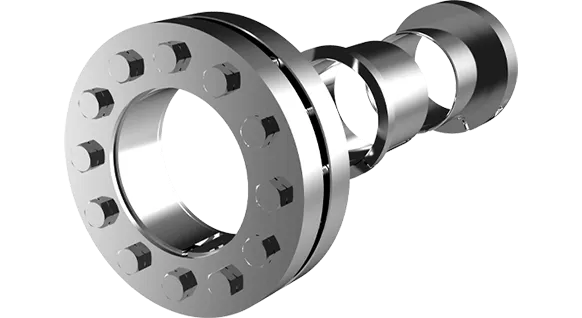

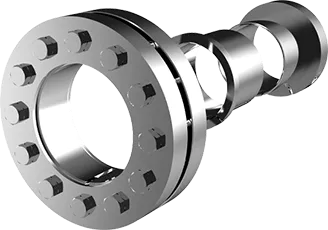

EASY-GRIP™
3-Part Keyless Shaft Locking System
Easy-Grip™ uses unique interchangeable bushings and a shrink disc set to allow easy attachment of the gear reducers to standard available shafting up to h11 tolerances.
Support Bushing
Positions the reducer axially on the
driven shaft.
driven shaft.
Clamp Bushing
Compensates for the space between the
gear reducer hollow shaft inner diameter and
the diameter of the driven shafts.
gear reducer hollow shaft inner diameter and
the diameter of the driven shafts.
Shrink Disc
Compresses the hub, clamp bushing, and driven
shaft to transmit torque.
shaft to transmit torque.
COMMERCIAL TOLERANCE
RELIABLE
LESS SPARES
EASY INSTALL & REMOVAL
Stainless Steel components available on request. Contact us for availability.
IP54 or IP65
Cabinet Mounted
IP67
the
CHECK
ENGINE
LIGHT
for
SPEED
REDUCERS
LIGHT TREE
Optional for visual
alarm notifications.
alarm notifications.
DIAGNOSTIC UNIT
Multiple Channels of Vibration,
EthernetIP, ProfiNet, and ModBus
communications available, History
Data storage location.
EthernetIP, ProfiNet, and ModBus
communications available, History
Data storage location.
MOUNTING PADS
For ease of sensor placement.
CYCLOSMART®
The Check Engine Light for Speed Reducers
CycloSMART® is a condition monitoring system that provides predictive maintenance by notifying customers—via local ethernet or broadcast— the health of the asset. Thus, minimizing risk while avoiding catastrophic failure.
CycloSMART® is fully customizable and provides real-time condition data of all of our reducers or any piece of rotating equipment. It provides an accurate condition signal without the need for further analysis. Leave the thinking to us!
CycloSMART® is fully customizable and provides real-time condition data of all of our reducers or any piece of rotating equipment. It provides an accurate condition signal without the need for further analysis. Leave the thinking to us!
CYCLOSMART® BENEFITS
Predictive
Machine diagnostics for early warning and detection to avoid failure.
Reliable
Schedule machine downtime to avoid lost production.
Cost-Effective
Lower total cost of ownership.
Optimization
Customizable systems to meet many different application needs.
Expandable
Multi-reducer and component monitoring.
Compatible
16 inputs, communication via Ethernet/IP and Profinet available.
Safe
Monitor assets from the safety of your desk via network connections.
