CYCLO® BEVEL BUDDYBOX® 4
Click or tap plus for more info
INPUTS
MOUNTING
CLICK TO VIEW
•

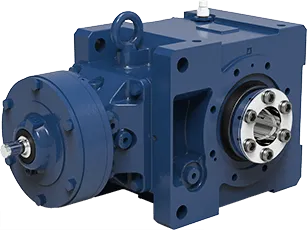

Taper-Grip®
•
Shrink Disc
•

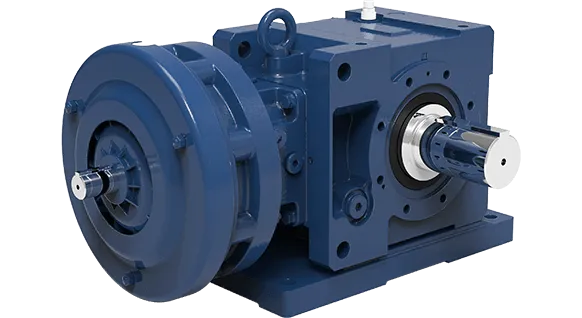

KHB
•
Solid Shaft
•

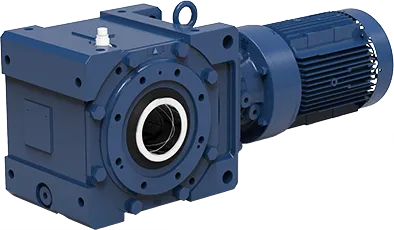

Integral
•

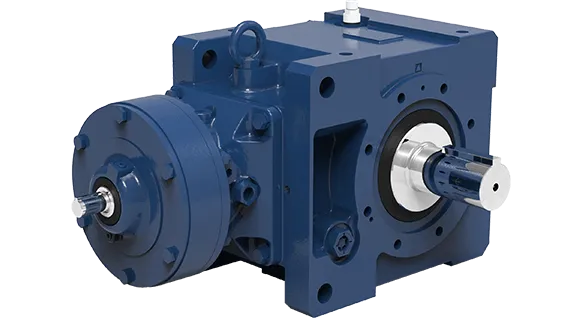

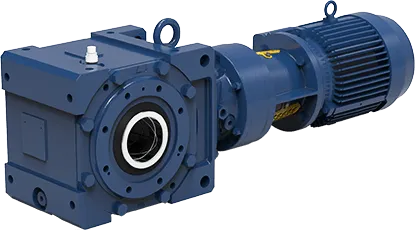

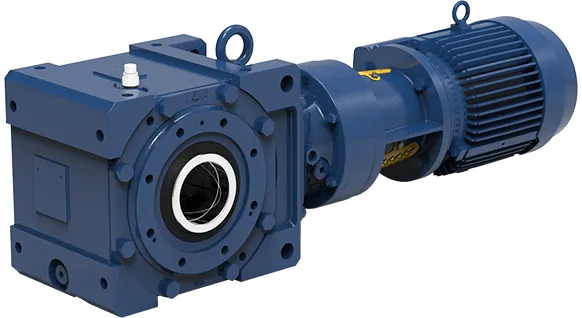

C-Face Motor
•

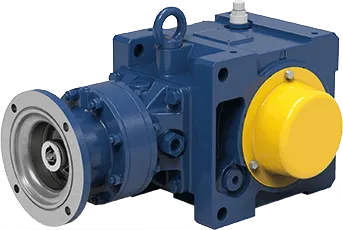

Quill
•

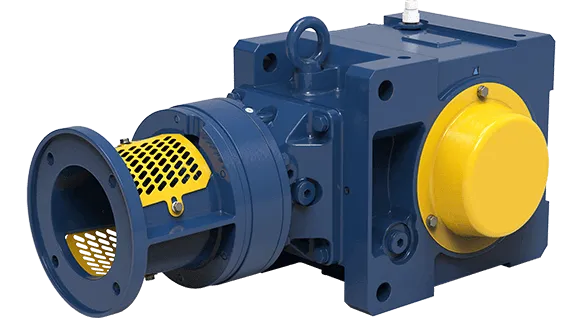

C-Face
•

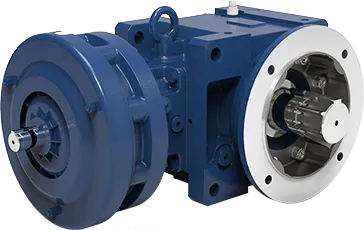

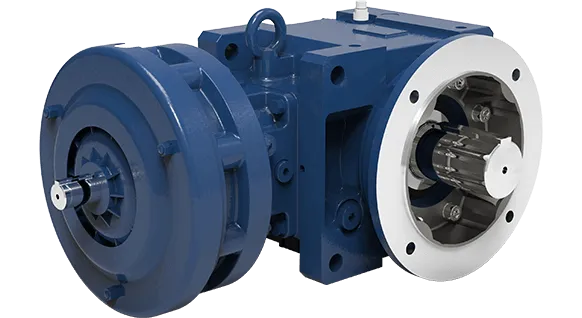

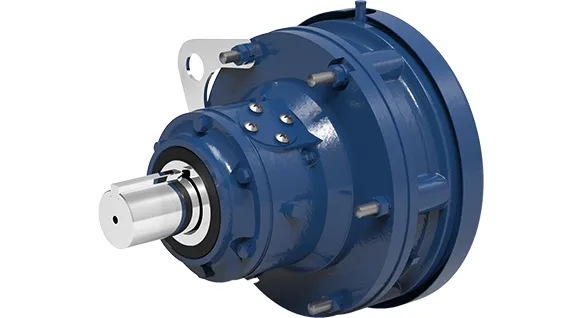

Flange
•

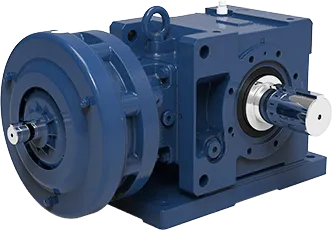

Foot
•

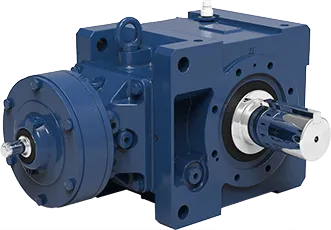

U-Face
•
Torque Arm
•
N/A
•
N/A
•
N/A
•

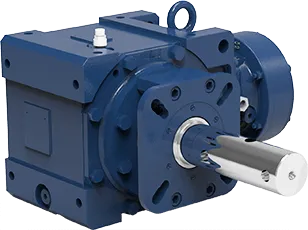

Screw Conveyor
•
Mixer Drive
•
Industry Packages
•
N/A
•
N/A
ONE PIECE PINION
Oversized, single-piece pinion provides
a robust solution capable of 300%
momentary shock-load. Designed and
manufactured in the U.S.A.
a robust solution capable of 300%
momentary shock-load. Designed and
manufactured in the U.S.A.
DUCTILE IRON HOUSING
Twice as strong as cast iron, making it
one of the most rugged bevel gearboxes
on the market.
one of the most rugged bevel gearboxes
on the market.
OIL LEVEL INDICATOR
Wear sleeves and pressure-rated
to prevent leaks.
to prevent leaks.
HOUSING
Rugged, shock-resistant cast iron housing.
Optional ductile iron housing also available.
Optional ductile iron housing also available.
OPTIONAL TACONITE
SEAL ASSEMBLY
Heavy-duty, fortified, grease-purgeable
system withstands the most demanding
applications.
system withstands the most demanding
applications.
TANDEM DUAL LIP SEALS
Prevent leaks and exclude contaminants.
TAPERED BEARINGS
Resist axial and radial loads simultaneously.
100% HARDENED STEEL COMPONENTS
Long life, smooth operation, and superior strength.
CYCLO® DISC
All rotating components are manufactured from fully hardened, vacuum
degassed bearing-grade steel, for consistent, reliable performance.
degassed bearing-grade steel, for consistent, reliable performance.
HIGH-SPEED SHAFT
Swipe or move cursor to open

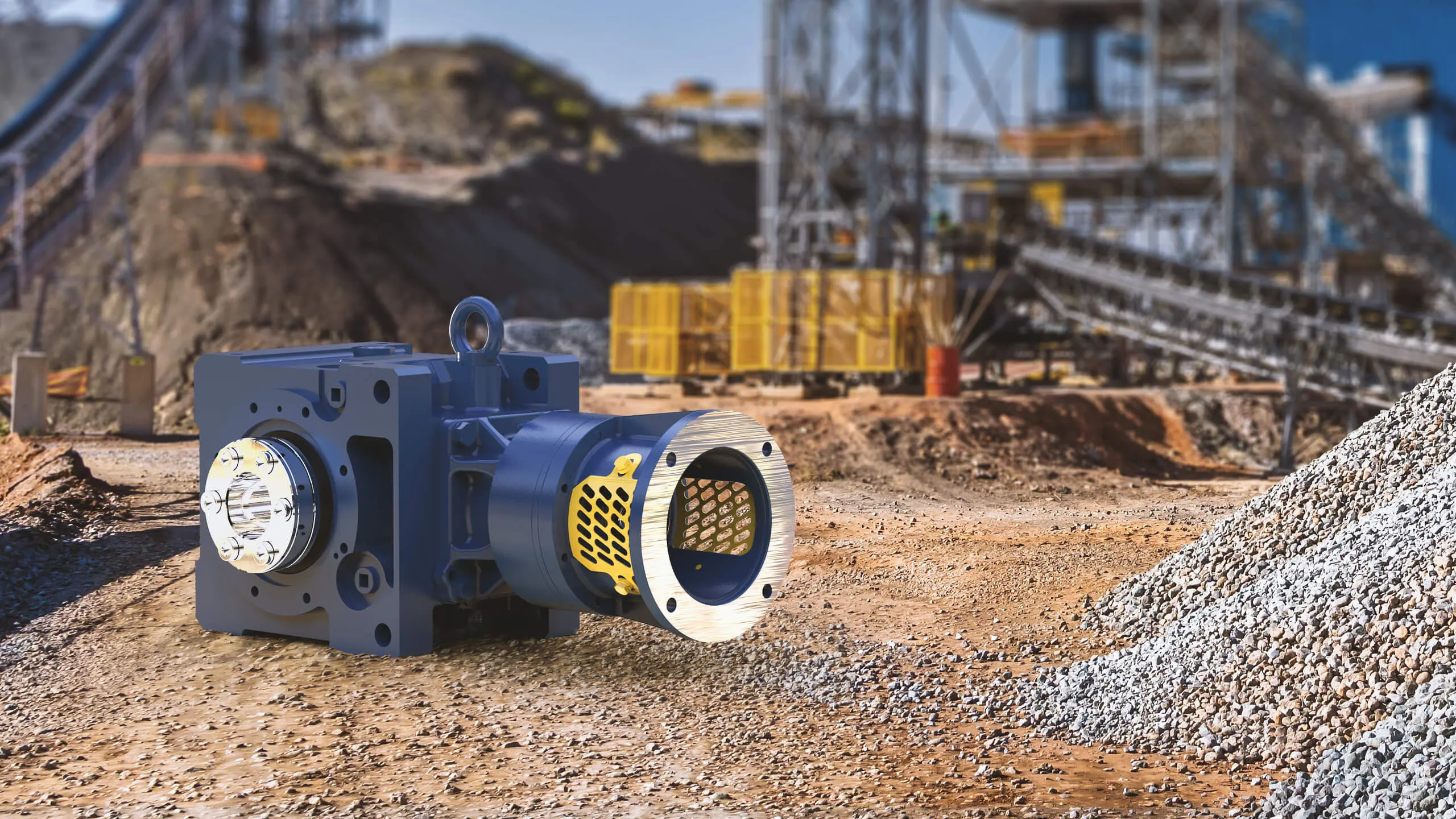

CYCLO® BEVEL BUDDYBOX® 4
RIGHT ANGLE SPIRAL BEVEL WITH CYCLO® OR PLANETARY UNITS
A robust, state-of-the-art, mid-sized family of speed reducers and gearmotors. The Cyclo® BBB4 has a unique combination of features that result in a highly reliable, efficient, and durable gearbox.
The all-steel internal construction, Cyclo® or planetary gear inputs and the ductile iron housing, provide unmatched ruggedness.
Also available as a mixer drive with an integrated drywell and space-saving footprint.
The all-steel internal construction, Cyclo® or planetary gear inputs and the ductile iron housing, provide unmatched ruggedness.
Also available as a mixer drive with an integrated drywell and space-saving footprint.

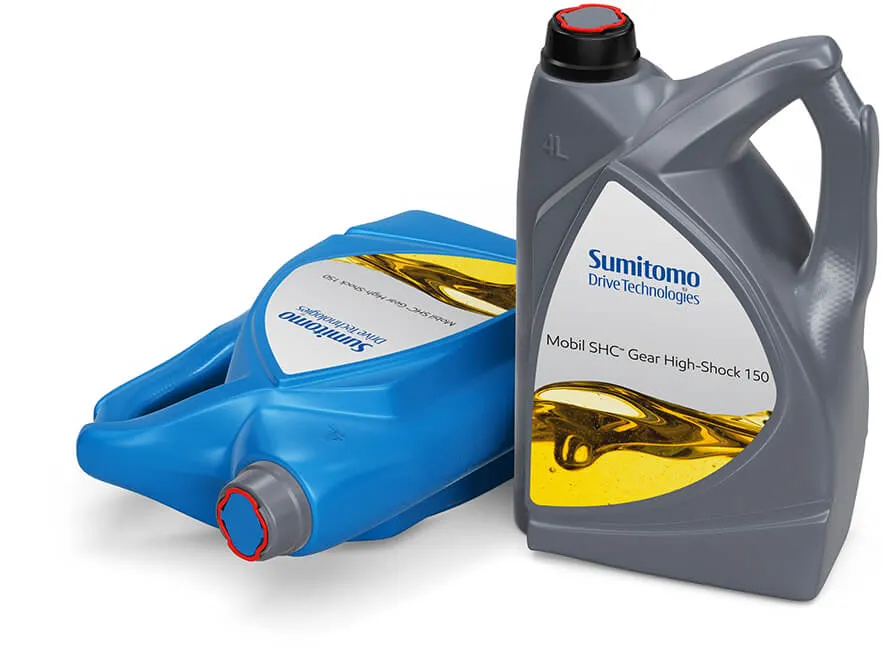

MOBIL SHC™ GEAR HI-SHOCK 150
High-Performance Synthetic Lubricant
Available for Cyclo® Products
Extends the Life up to 3 Times
Available 3-Year Warranty
SPECS
HP RATING
Up to 100 HP
(75 kW)
DIAMETER
1in to 4-15/16in
(Hollow & Solid)
TORQUE
Up to 159,983 lb•in
(18,076 N•m)
RATIO RANGE
11:1 up to 26,000:1
and greater
RIGHT-ANGLE SPEED REDUCER
Did you know...
Click or tap the plus icons on the LEFT to learn more about:
Reducer
Cyclo® Input Reduction Components
Bevel Gear Set
Housing
Output Bearings
Lubrication
Taper-Grip® Bushing Output Option
Configurator
100
HORSEPOWER
2 YR
warranty
26000:1
ratio

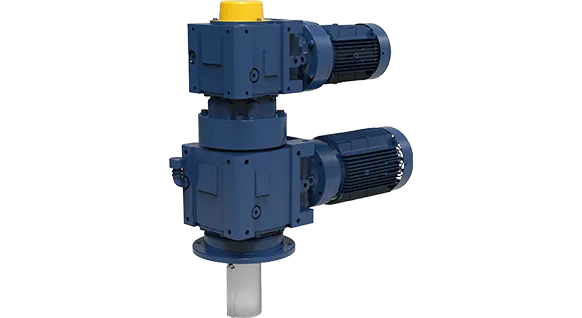

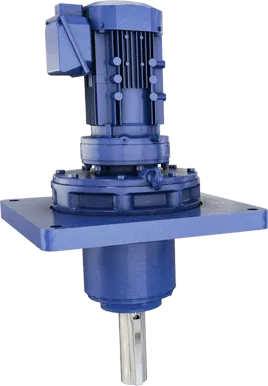

Mixer Drive
Integrated Drywell

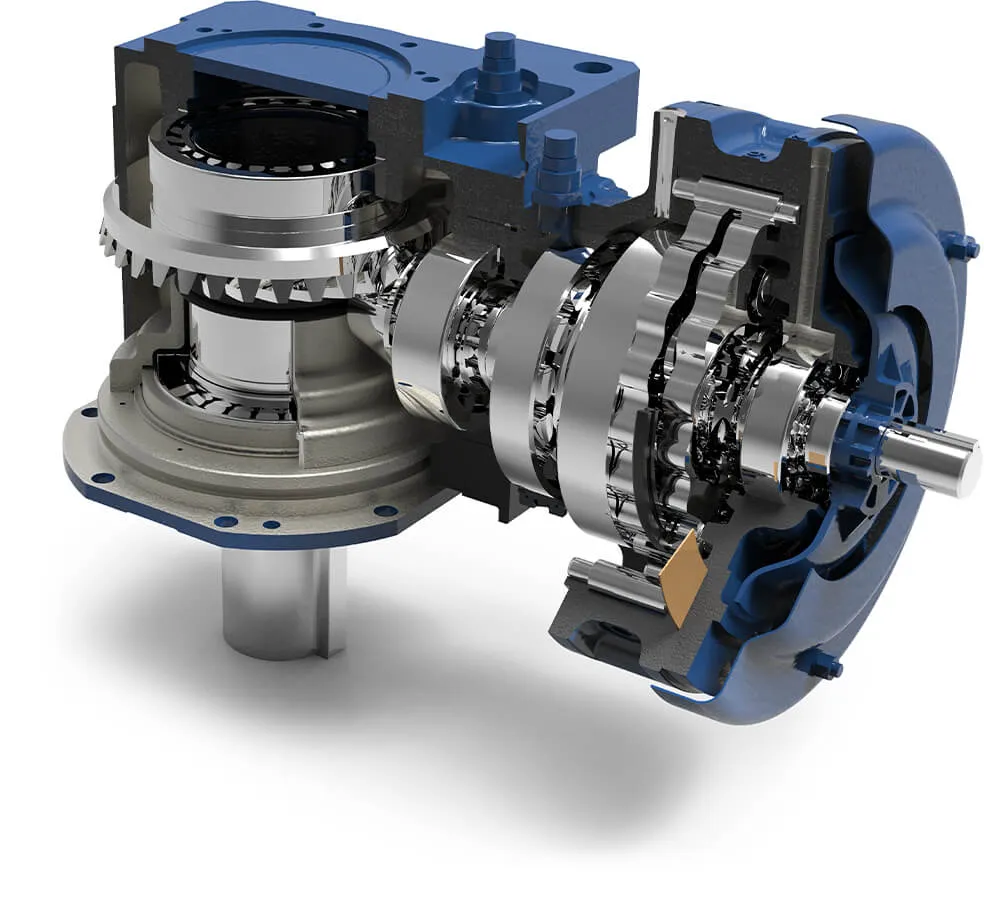

All of the features you know and love about our Bevel BuddyBox®– now in a Mixer Drive. With its integrated drywell, double output seals, and space-saving footprint it has everything you need.
Robust Low-Speed Drywell
Tapered Roller Bearings
Rugged Cyclo® or Planetary Input
High-Strength Ductile Iron Housing
PRODUCT PROTECTION
Low speed drywell eliminates leaks and contamination of your product.
ADAPTABLE
Easily configurable for a variety of motor types.
RUGGED COMPONENTS
Tapered roller bearings on the low speed shaft for longer bearing life.
STRONG AS AN OX
High-strength ductile iron housing resists external loads from mixing stresses.
Hi-Shock
After 5 years of testing in both the laboratory and the field, ExxonMobil, in partnership with Sumitomo Machine Corporation of America have formulated a unique, high-performance synthetic lubricant, Hi-Shock 150.
The revolutionary formulation significantly reduces internal friction, substantially extending operational life.
The revolutionary formulation significantly reduces internal friction, substantially extending operational life.
Lower Total Cost of Ownership
The exceptional oxidation resistance provides better lubrication, for longer, significantly extending service intervals.
Mobil SHC™ Hi-Shock 150 is the only synthetic oil approved by Sumitomo Drive Technologies for general use.
Enhanced Performance
The radically different lubricant film properties provide a considerable increase in Cyclo® life.
Full Synthetic
The PAO based formula is compatible with both mineral oils and PAO synthetic oil, simplifying conversions.
Three and Four Year Warranty
Units shipped pre-filled are eligible for our extended warranty program. Contact your local SMA representative for details.
IP54 or IP65
Cabinet Mounted
IP67
the
CHECK
ENGINE
LIGHT
for
SPEED
REDUCERS
LIGHT TREE
Optional for visual
alarm notifications.
alarm notifications.

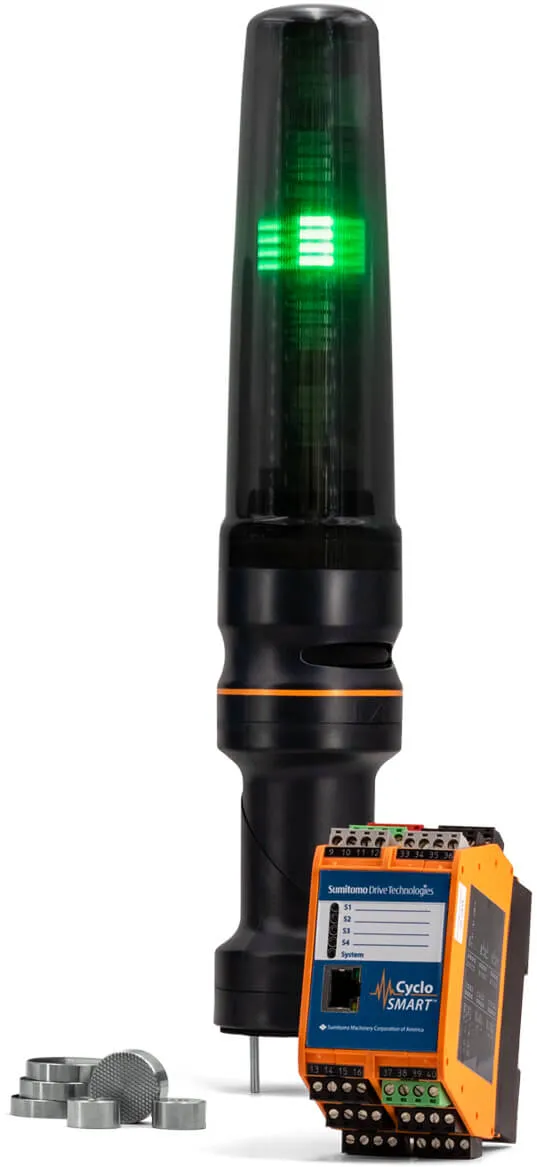

DIAGNOSTIC UNIT
Multiple Channels of Vibration,
EthernetIP, ProfiNet, and ModBus
communications available, History
Data storage location.
EthernetIP, ProfiNet, and ModBus
communications available, History
Data storage location.
MOUNTING PADS
For ease of sensor placement.
CycloSMART®
The Check Engine Light for Speed Reducers
CycloSMART® is a condition monitoring system that provides predictive maintenance by notifying customers—via local ethernet or broadcast— the health of the asset. Thus, minimizing risk while avoiding catastrophic failure.
CycloSMART® is fully customizable and provides real-time condition data of all of our reducers or any piece of rotating equipment. It provides an accurate condition signal without the need for further analysis. Leave the thinking to us!
CycloSMART® is fully customizable and provides real-time condition data of all of our reducers or any piece of rotating equipment. It provides an accurate condition signal without the need for further analysis. Leave the thinking to us!
CycloSMART® Benefits
Predictive
Machine diagnostics for early warning and detection to avoid failure.
Reliable
Schedule machine downtime to avoid lost production.
Cost-Effective
Lower total cost of ownership.
Optimization
Customizable systems to meet many different application needs.
Expandable
Multi-reducer and component monitoring.
Compatible
16 inputs, communication via Ethernet/IP and Profinet available.
Safe
Monitor assets from the safety of your desk via network connections.
Aftermarket

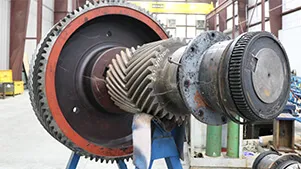

Our personnel are the industry’s most versed gearbox problem solvers. We provide both standard and tailored services, for maximum gearbox life.
Experts in Service
Global Support, Local Service
With a vast network of engineers and gearing experts, there is no problem we can’t handle.

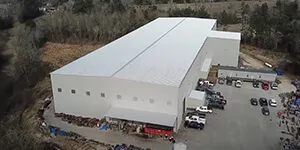

In addition to our extensive network, LUFTEX Gears Manufacturing and Services provides unmatched capabilities and expertise in the area of custom gearbox repair and service. With a 60-ton crane capacity and 41-foot hook height, no gearbox is too big for us to handle.
