CYCLO® 6000
Industry Packages
Mill, chemical, food, and outdoor duty packages available.
Available for Sizes: 6060 to 6265.
INPUTS
MOUNTING
CLICK TO VIEW
•
X Adapter
•
Integral Motor
•
C-Face Motor
•

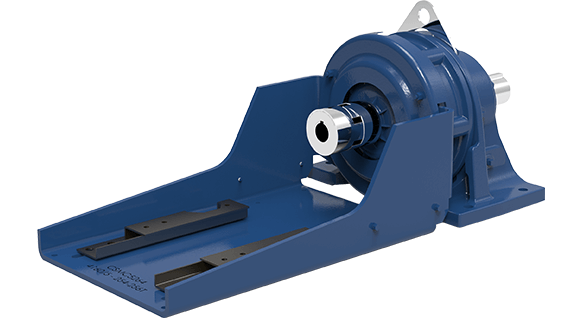

Shovel Base
•
Free Shaft
•
J Adapter
•
Top Mount
•
"H" Foot
•
V-Flange
•
F-Flange
•
N/A
•
N/A
•
N/A
•
N/A
•
Overhead Drive
•
Extended Base
•
N/A
•
N/A
500% MOMENTARY SHOCKLOAD
The Cyclo® design spreads the load across
2/3 of the reduction components, enabling
the units to absorb and dissipate shocks
better than typical concentric drives.
2/3 of the reduction components, enabling
the units to absorb and dissipate shocks
better than typical concentric drives.
SEALS
Wear sleeves are pressure-rated
to prevent leaks.
to prevent leaks.
OIL LEVEL INDICATOR
HOUSING
Rugged, shock-resistant cast iron housing.
Optional ductile iron housing also available.
Optional ductile iron housing also available.
RING GEAR HOUSING
High power density, all reduction
contained in compact ring gear
housing.
contained in compact ring gear
housing.
SLOW-SPEED SHAFT
ECCENTRIC CAM
CYCLO® DISC
All rotating components are fully hardened,
vacuum degassed bearing grade steel, for
consistent, reliable performance.
vacuum degassed bearing grade steel, for
consistent, reliable performance.
DYNAMIC AIR MOTIVATOR
HIGH-SPEED SHAFT
Swipe or move cursor to open
CYCLO® 6000
UNMATCHED RELIABILITY & EXCEPTIONAL PERFORMANCE
Cyclo® speed reducers and gearmotors are the premier in-line drives. The revolutionary Cyclo® design provides quiet, efficient, and reliable performance exceeding that of involute tooth gear designs.
Unlike geared designs, the Cyclo®'s reduction components operate in compression rather than shear, which results in exceptionally rugged and shock resistant performance.
The Cyclo® technology coupled with innovative product options and accessories offer the most extensive range of application solutions available.
Unlike geared designs, the Cyclo®'s reduction components operate in compression rather than shear, which results in exceptionally rugged and shock resistant performance.
The Cyclo® technology coupled with innovative product options and accessories offer the most extensive range of application solutions available.
SPECS
POWER RATING
Up to 175 kW
DIAMETER
14mm to 180mm
(Solid Shaft)
TORQUE
Up to 68,130 N•m
RATIO RANGE
3:1 up to 658,503:1
INLINE CONCENTRIC SPEED REDUCER
Did you know...
Click or tap the plus icons on the LEFT to learn more about:
Reducer
Reducer Components
Housings
Lubrication
Severe-Duty
500%
shockload
2 YR
warranty
658,503:1
ratio
Aftermarket
Our personnel are the industry’s most versed gearbox problem solvers. We provide both standard and tailored services, for maximum gearbox life.
Experts in Service
Global Support, Local Service
With a vast network of engineers and gearing experts, there is no problem we can’t handle.
Repairs
Scheduled & Emergency Repair
Repair services for all your related gearbox needs and 24-72 hour turnaround to the original factory specifications and warranty using Sumitomo -manufactured parts.
Root Cause Investigation
Product Support
Apply a wide range of approaches, tools and techniques to uncover the causes of your problems.
Field Services
For Your Convenience
Most of the services offered and customized training can be performed on location.
