BEVEL BUDDYBOX® H SERIES
Click or tap plus for more info
Coupled C-Face
Adapter windows simplify motor installation.
Available for Sizes: A to F.
Mounting Modal 7
Allows unusually compact installations.
Available for Sizes: 6060 to 6265.
Keyed Hollow Bore
Shaft mounted option for reduced envelope dimensions.
Standard option for Sizes C-M.
Options Modal 5
Mill, chemical, food, and outdoor duty packages available.
Available for Sizes: 6060 to 6265.
Governing sanitation bodies such as USDA, FDA, NSF, CFIA and 3-A are recommending higher levels of bacteria control and increased sanitation measures in food and beverage handling environments. With this sanitation focus, there is an industry-wide initiative to increase the chemical concentration, water temperature, and frequency that facilities are cleaning their equipment.
In order to resist high water pressure, humidity, acidity, and caustic environments, Sumitomo Drive Technologies developed the UltraSHIELD360°® package—a tri-layer coating system.
In order to resist high water pressure, humidity, acidity, and caustic environments, Sumitomo Drive Technologies developed the UltraSHIELD360°® package—a tri-layer coating system.
2-Part Epoxy Topcoat
2-Part Epoxy Color Coat
2-Part Epoxy Primer
Quality Food-Grade Components
We offer top of the line food grade components to accompany our speed reducers.
Marathon Powerwash™ Motors
Totally enclosed stainless steel
100% paint-free construction
Double-sealed ball bearings
Cassette Seals
Antimicrobial FKM material
Spinning expels contaminants
Self-contained and self-cleaning
IN/OUTPUTS
MOUNTING
CLICK TO VIEW
•
X Adapter
•
J Adapter
•
Gearmotor
•
Keyed Hollow Bore
•
Shrink Disc
•
Not Used
•
Not Used
•
Face Mount
•
Flange Mount
•
Torque Arm
•
Foot Mount
•
N/A
•
N/A
•
C-Face Motors
•
EasyGrip™
•
SHIELD360® Protection
BEVEL PINION & HELICAL GEARING
A combination of power and speed. Up to 97% gear
efficient across all ratios providing a smooth, quiet
operation which does not require a cooling fan.
efficient across all ratios providing a smooth, quiet
operation which does not require a cooling fan.
HARDENED
STEEL GEARING
SEALS
Multiple lip, harsh duty, and food-
grade designs available to prevent leaks.
grade designs available to prevent leaks.
GEARS
High torque geometry in low-speed gear.
Low-noise geometry in high-speed gears.
Low-noise geometry in high-speed gears.
SLOW-SPEED SHAFT
Shaft projections include captured keyways
with rounded end key inserts to eliminate
stress concentrations.
with rounded end key inserts to eliminate
stress concentrations.
SLOW SPEED SHAFT
DUAL BEARING SUPPORT
BEVEL PINION
Single-piece all steel bevel pinion for longer life.
Lasts millions of cycles without measurable wear.
Lasts millions of cycles without measurable wear.

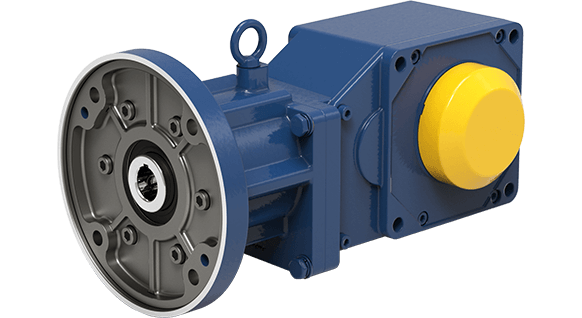

C-FACE QUILL
Supported by two bearings for long life, the quill
style motor adapter allows for maximum motor flexibility.
style motor adapter allows for maximum motor flexibility.
DUAL BEARING SUPPORT
MAINTENANCE-FREE
OIL-LOCK®
Standard high-speed
seal arrangement.
seal arrangement.
PINION SHAFTS
Rigid standardized pinion shafts and
housings for better lateral load distribution.
housings for better lateral load distribution.
QUALITY HOUSING
Aluminum housing is lighter and
increases thermal capacity.
increases thermal capacity.
Swipe or move cursor to open
BEVEL BUDDYBOX® H SERIES
EXTREMELY EFFICIENT AND COMPACT WITH LOW REDUCTION RATIOS
The combination of a Bevel Input and a Helical Output make this unit extremely efficient with the capacity for input speeds up to 3,600 rpm. Dependable hardened steel gearing inside a lightweight, compact housing allows for easy installation with less load on the head shaft. Aluminum construction provides high thermal capacity.
The maintenance-free grease lubrication enables the unit to be mounted in any orientation without custom modifications. The greater efficiency of the BBB-H allows for use of a smaller motor, resulting in the same performance with much lower operating costs. Its power and speed make this unit perfect for airport baggage handling and general conveying applications.
The maintenance-free grease lubrication enables the unit to be mounted in any orientation without custom modifications. The greater efficiency of the BBB-H allows for use of a smaller motor, resulting in the same performance with much lower operating costs. Its power and speed make this unit perfect for airport baggage handling and general conveying applications.
SPECS
POWER RATING
Up to 11 kW
DIAMETER
40mm to 55mm
(Hollow Bore)
TORQUE
Up to 1,020 N•m
RATIO RANGE
5:1 up to 20:1
RIGHT-ANGLE SPEED REDUCER
Did you know...
Click or tap the plus icons on the LEFT to learn more about:
Reducer
Gears
Housing
Lubricated for Life
Output Options
REDUCER
High input speed capability, up to 3600 rpm (120 Hz) with a high and low reduction ratio from 5:1-20:1 and a motor capacity of 3-15HP.
Bevel gear technology is up to 97% efficient across all ratios and requires no cooling fan.
The greater efficiency of the BBB-H allows for use of a smaller motor, resulting in the same performance with much lower operating costs.
The smooth and quiet operation of the BBB-H makes it the perfect choice for commercial applications in which a low noise level is desired.
The quality materials and high performance grease result in a reliable unit that does not require maintenance.
A full array of input and output options with standard universal mounting positions provides a product to fit nearly any requirement.
GEARS
Patented bevel gear technology with up to 97% gear efficiency across all ratios.
All-steel bevel gear design transmits power more efficiently for greater torque density in a compact unit.
Matched bevel sets insure quiet operation.
HOUSING
The ADC12 aluminum housing is compact, lightweight, heat dissipating, and corrosion resistant.
Available hollow shaft and flange mounted configurations for multiple equipment connection options.
LUBRICATED FOR LIFE
The unit is filled with the appropriate grease at assembly. All grease options are maintenance-free grease which eliminates shutdowns for oil or grease changes.
Grease lubrication enables the unit to be mounted in any orientation without custom modifications.
High temperature and low temperature, plus standard ambient temperature seal designs are available to maximize operational life.
OUTPUT OPTIONS
Carbon steel and Stainless shafting are available.
Inch and metric keyed hollow bores for all frame sizes.
OPTIONS, DRIVE PACKAGES, AND CUSTOMIZATION
Sumitomo offers a wide variety of standardized options to suit your application:
Breathers
Forced lubrication and Condition Monitoring
Shaft connection accessories and motor mounting
Sumitomo offers complete Input to Output drive packages:
Heavy-duty motor mounting options
A shaft coupling option for every application
Safety guards which meet/exceed OHSA/MSHA recommendations.

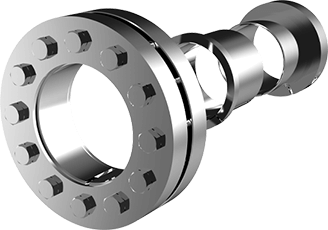

TAPER-GRIP® BUSHING OUTPUT OPTION
The patented Sumitomo Taper-Grip® bushing system provides a simple shaft-mounting device that provides self-aligning, backlash-free torque transmission to the driven shaft.
The unique design provides easy unit mounting and removal from the driven shaft, and resistance to fretting and corrosion.
